Description

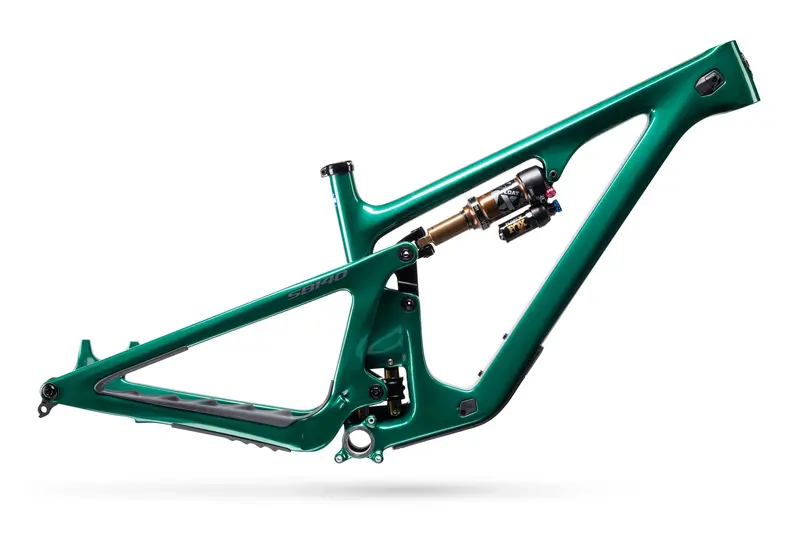

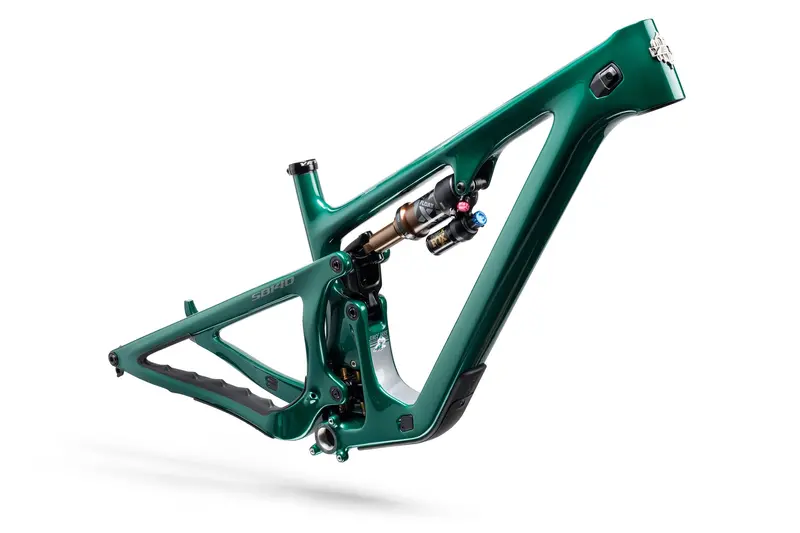

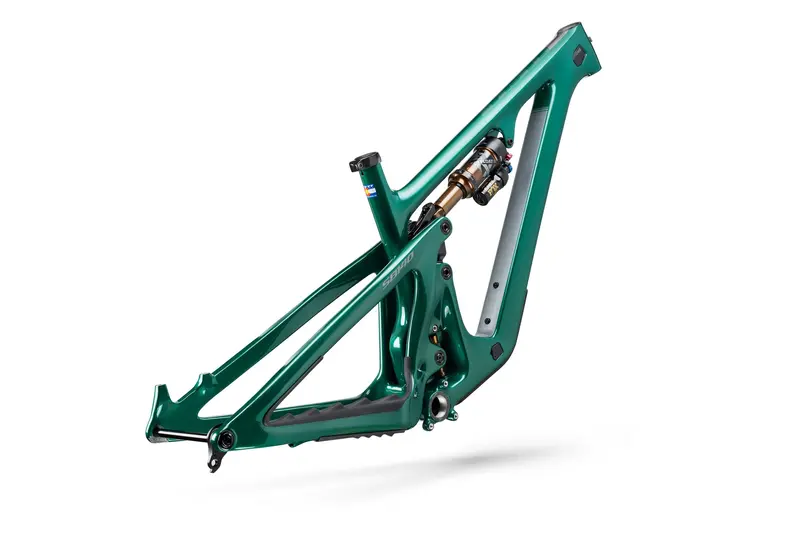

Yeti SB140 T4 29 – XX AXS
Yeti SB140 Massively capable.Super comfortable.Poised for more.
Meet the bike in between nothing. Leaving no rider wanting. Master of the climb, the bomb, the rail, and the air. The utterly unequivocal. The rule crusher. The trend buster. No rig can rule all, but this one can absolutely rule.The Mountain Bike!
More comfortable on massive days.
Rather than conjuring up a claim to rationalize the vanilla geometry that dominates other “mid-travel” bikes, we asked how the remarkable feel of the SB130 can become even more capable of tackling a wider range of terrain? The result is a size specific geometry that puts SB140 riders in a more balanced position for extra spicy trails in every direction.
Trail Bike? Yes, and…
This is the mountain bike you reach for when the trail is untamed and unrelenting, in both directions. “Trail bike” is a term that gets used pretty liberally in the industry, so we designed the SB140 to be even better suited to go deep and find out what’s on the other side.
Key Details:
Switch infinity. Recalculated
Discover the next-generation of translating pivot suspension designs. Setting new expectations for kinematics, longevity, sensitivity, and strength.
Cable Management
Internally routed cable tubes with secure closures at entry and exit points eliminate rattles and cable rub. Whether running a mechanical drivetrain and dropper or a wireless setup, cable management is intuitively easy and quiet.
Threaded BB
Threaded aluminum bottom bracket shell with integrated ISCG-05 tabs. This critical drivetrain interface is now more durable, cleaner, and easier to service.
Universally Ready
If a hanger bending crash occurs, the new Yeti models use the Universal Derailleur Hanger (UDH) interface — the industry standard mount for a rear derailleur. The UDH is available in nearly any bike shop, Yeti dealer or not.
Full Drop
As the capability of our bikes continues to increase, so does their ability to run modern day, full-stroke dropper posts. Our seat tube is shorter to allow for a longer dropper posts. Most riders will be able to use a 150mm dropper posts on Small frames*, 175mm on Medium frames*and 200mm+ dropper posts on L-XXL frames* respectively.
*Dependent on actual seat height on specific bike size.
Refined new look. Still distinctly Yeti.
The refined main frame and swingarm silhouette is more than just striking good looks – it’s an engineering approach that packages Switch Infinity and shock linkage in a tighter, more efficient frame with added impact clearance. Holistic frame chassis stiffness has increased, along with frame ground clearance.
Unparalleled feel for all riders
Every rider deserves a frame feel that’s tuned for them, regardless of frame size. Over the course of hundreds of virtual simulation comparisons and back-to-back carbon prototype testing, we’ve refined our carbon layups to deliver consistent torsional stiffness and flex profiles across all frame sizes. The feel is precise yet compliant while structurally balancing light weight and durability.
A Smarter leverage rate. Progressivity 14%
Designed around a relatively linear progression curve, with slightly more progression at the end of the stroke for the added travel of the bike. SB140 Riders get great small bump sensitivity, an incredibly supportive mid stroke and a composed, bottomless feel. It’s a progression curve that’s delivers quality full travel capability, for mountain biking. Other bikes might have more progressive curves. The question is, what for?
Patented Compact Wishbone
Our patented, two-piece wishbone shock extender optimizes leverage rate while pushing the shock forward in the frame. This forward positioning allows for a large range of shock compatibility, decreases stand over height, reduces shock tab sizes, increases water bottle compatibility, and increases downtube clearance. When it’s time for service, shock removal is quick and easy.
Speed Metal
Our new pivot designs use 100% standard sized cartridge bearings secured with precision — machined floating collet axles. All bearings are pressed into the linkage assembly vs the swingarm or front triangle.
Specifications:
table { width: 100%; border-collapse: collapse; font-family: Arial, sans-serif; } th, td { padding: 8px; border: 1px solid #ccc; } th { background-color: #f0f0f0; }
| Specification | Details |
|---|---|
| FORK | FACTORY 36 GRIP X2 160mm |
| SHOCK | FACT FLOATX |
| CRANK | XX T-Type 30T |
| BB | BB DUB BSA 73 MTB |
| REAR DER | XX T-Type |
| CASSETTE | XX T-Type 10-52 |
| CHAIN | XX T-Type 122 LINK |
| SHIFT | AXS POD W/CHARGER/CLAMP/2-BATTERIES |
| CLAMPS | MMX AND CLAMP SRAM BRAKE |
| BRAKES | MAVEN ULTIMATE |
| FRONT ROTOR | HS2 200 |
| REAR ROTOR | HS2 180 |
| WHEELSET | XMC 1700 29″ |
| FRONT TIRE | MINION 3C MAXX TERRA EXO 29X2.5 |
| REAR TIRE | MINION DHR II 3C EXO 29X2.4 |
| HEADSET | 110 INTEGRATED |
| BAR | YETI 35X780 35MM RISE |
| STEM | Enduro MK3 35X50 AM |
| POST | REVERB AXS 2.0 – W/POD LEFT/CLAMP/NO BATT |
| SEAT | SOLANO TITANIUM FUSION FORM |
| GRIPS | ELITE PRO BLACK |
| FRAME | SB140 29 T-SERIES FRAME |
