Pivot E-Vault Pro Gravel Bike – GRX Di2 Electronic Groupset – Glacial Green Metallic – 2021

Description

The Pivot E-Vault Pro 700c – GRX Di2 – Glacial Green Metallic – 2021 is a top-tier, versatile e-bike designed to excel in both urban environments and on more rugged terrain. Here’s a detailed breakdown of its features and specifications:

Design and Frame

• Frame Material: The E-Vault is crafted from high-quality carbon using Pivot’s proprietary Hollow Core internal molding technology. This ensures an optimal stiffness-to-weight ratio, delivering a lightweight yet incredibly strong frame.
• Geometry: Designed with next-generation gravel/road geometry, the E-Vault offers all-day comfort on various surfaces, whether you’re commuting through city streets or venturing onto gravel paths.
• ISO-FLEX Technology: This patent-pending feature isolates the seatpost from the frame, enhancing comfort without compromising stiffness and control. This results in a smooth, responsive ride that absorbs vibrations and rough terrain with ease.
• Integrated Fender Mounts: Hidden mounts allow for sleek and clean accommodation of fenders, making the E-Vault a practical choice for all-weather riding and commuting.

Motor and Battery

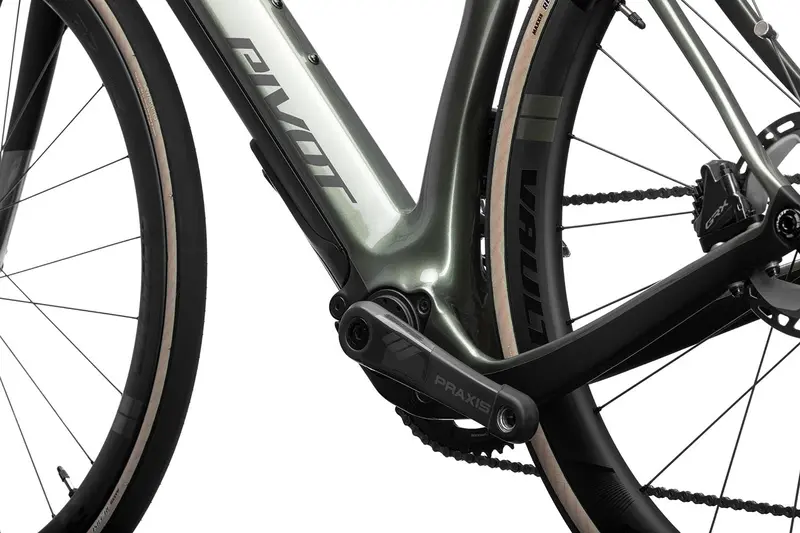

• Fazua Evation Drive Unit: The E-Vault features the lightest and most compact Fazua Evation drive unit, providing 252 Watt/hours of pedal assist. This motor is designed for discreet integration into the bike’s chassis, maintaining a clean and unobtrusive look.
• Decoupling Mechanism: When not engaged, the motor completely decouples from the bottom bracket, allowing for smooth pedaling without resistance. This is a significant advantage over other e-assist motors that remain engaged, making the E-Vault feel like a regular bike when you’re not using the power assist.
• Battery: The lightweight Fazua battery is seamlessly integrated into the frame, maintaining the bike’s sleek design. Additional batteries and custom on-the-bike battery bags are available, enabling riders to extend their range with ease.

Components

• Fork: The bike is equipped with a Pivot Vault Carbon fork, which is designed to handle both smooth roads and rougher gravel paths with equal proficiency.
• Drivetrain:
  • Front Derailleur: Shimano GRX Di2 Double FD-RX816
  • Rear Derailleur: Shimano GRX 815 Di2 11-Speed
  • Shifters: Shimano GRX 815 Di2 11-Speed
  • Cassette: Shimano Ultegra HG-800 11-34t
  • Crankset: Fazua Carbon 50/34, specifically designed to complement the Fazua motor system.
  • Chain: Shimano CN-HG600 11-Speed

Braking and Control

• Brakes: Shimano GRX 810 2-piston brakes provide reliable stopping power, crucial for maintaining control on varied terrain and in unpredictable conditions.
• Rotors: Both front and rear are equipped with Shimano XT CenterLock 160mm rotors, ensuring consistent and powerful braking performance.
• Handlebar: PRO PLT Carbon handlebar with varying widths depending on frame size (38cm XS, 40cm SM, 42cm MD, 44cm LG-XL), offering ergonomic comfort and control.
• Stem: Phoenix Team 31.8mm, designed for stiffness and precision steering.

Wheels and Tires

• Wheels: The E-Vault rolls on Reynolds ATRx 23mm Aluminum 700C wheels, known for their durability and performance across different terrains.
• Tires: Maxxis RE-FUSE 700c x 32mm TR tires are fitted for a balance of grip, comfort, and efficiency on both pavement and gravel. The tires come in Black (Stealth) or Skinwall (Green) options.

Saddle and Seatpost

• Seatpost: Phoenix Pro ISO Flex Carbon seatpost enhances comfort through its vibration-damping properties.
• Saddle: Phoenix WTB Team Volt (Narrow Width) saddle is designed for long rides, offering support and comfort.
