MS75021-1 Brass 12-Pin Socket and Cover Plate Set – NSN 7731428

Description

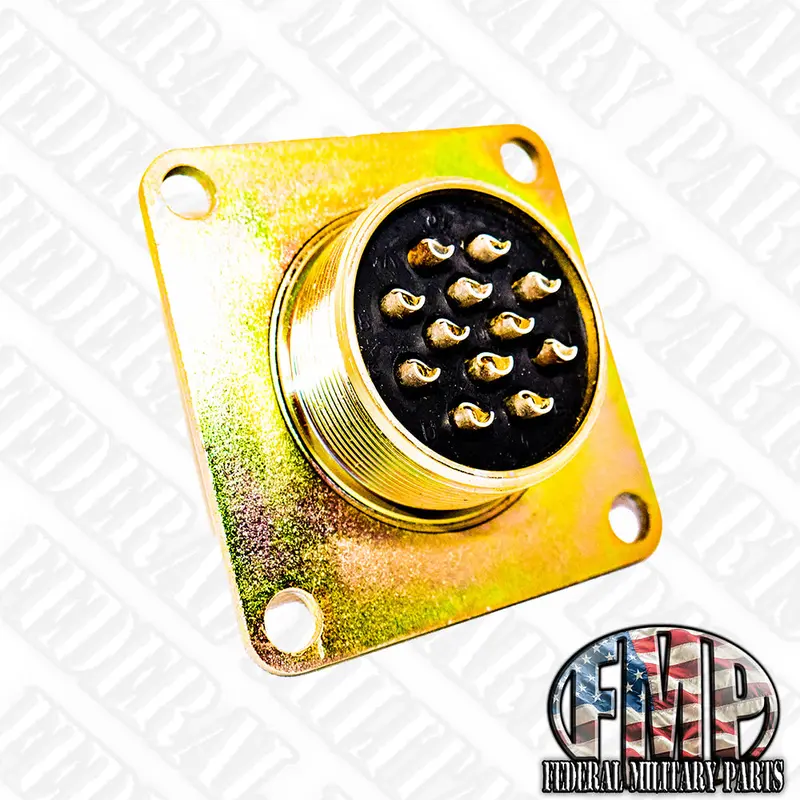

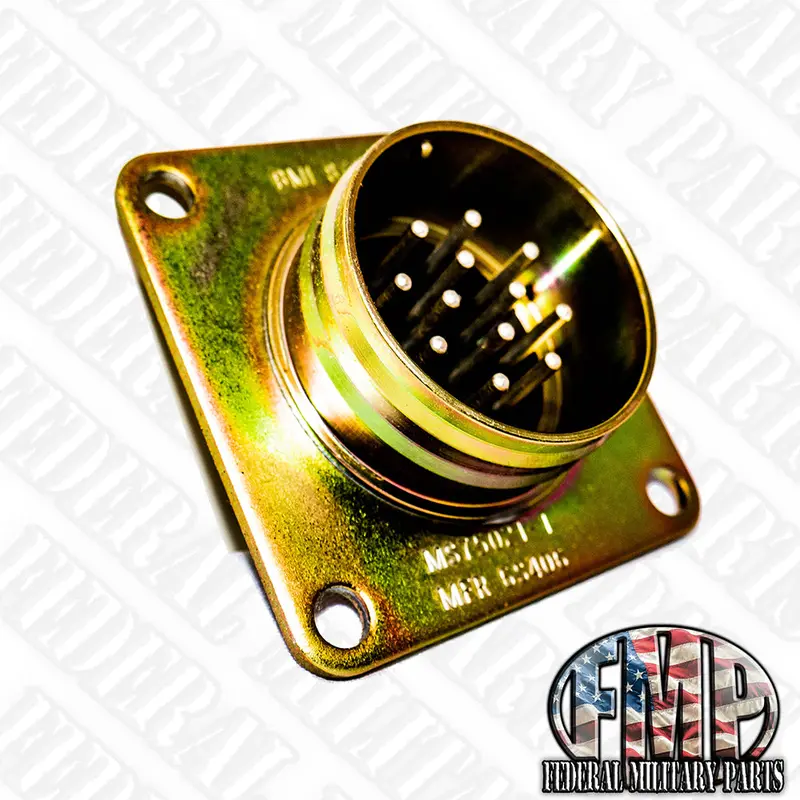

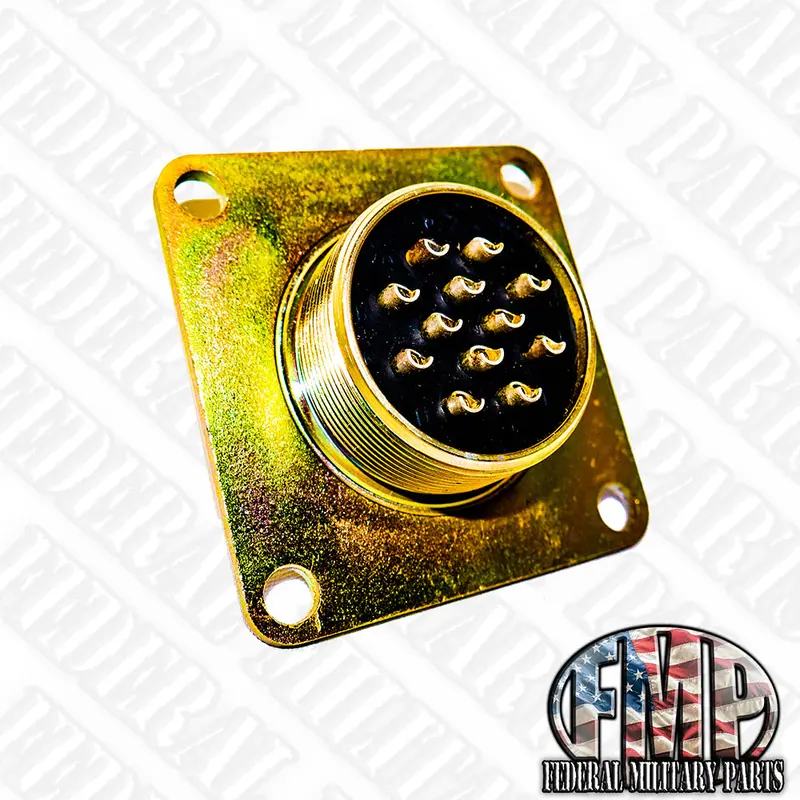

This item includes two components; The brass 12-pin receptacle MS75021-1 and the Cover Plate 7731428 for the receptacle.

Amphenol Trailer mounted receptacle. MS75021-1, alternate numbers 2HA24, 7525173, 60-036028-51P. NSN 5935008463883  5935-00-846-3883

WIRING INSTRUCTIONS:

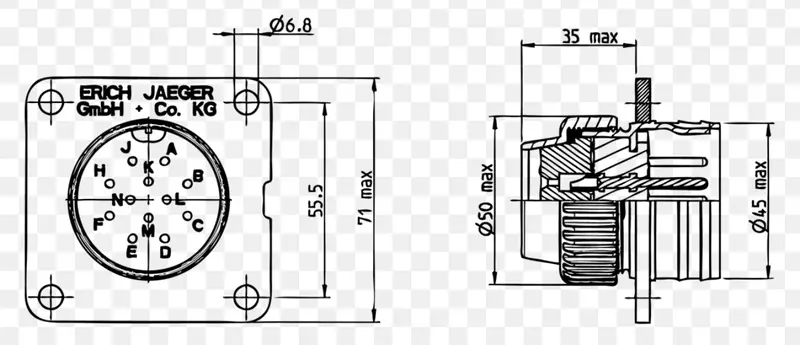

Standard Military vehicle wiring information (letters are marked next to connector contacts)
A, C, H – blackout tail lights and blackout clearance lights (all three pins are electrically connected together within vehicle’s wiring harness)
B – brake light and left turn signal light
D – ground
E – tail lights / clearance lights
F – blackout brake light
J – brake light and right turn signal light
K – auxillary power feed used on semi tractor only
L, M, N – not used

This plug is used for many American and NATO vehicles from World War 2 to todays military trucks and trailers.  MS75021-1 Trailer Socket Military 12 Pin Brass Electrical Connector Plug M998

Key words: Kaiser jeep M715

Always be sure to use di-electric grease for all electrical connections to ease assembly of connectors and seal out moisture.  BUY HERE
