Description

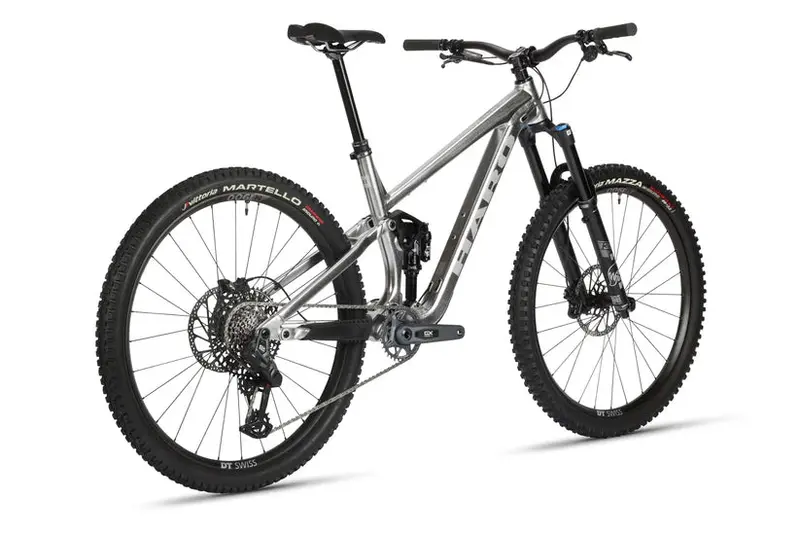

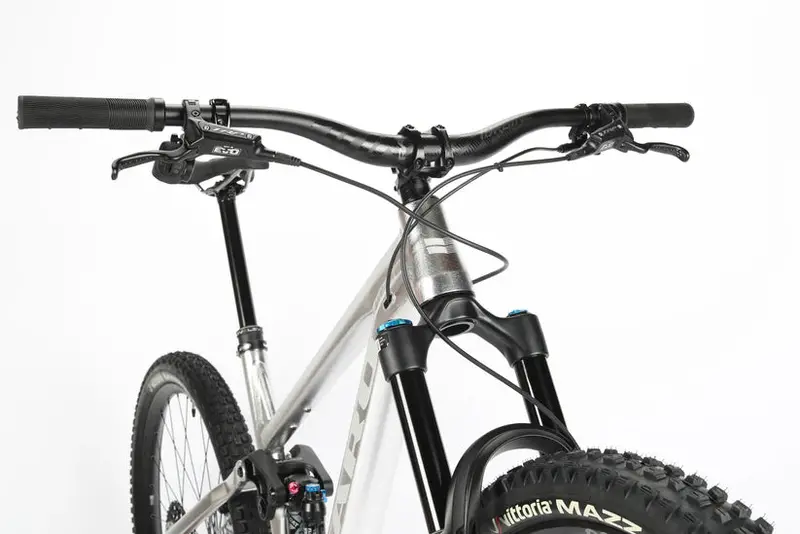

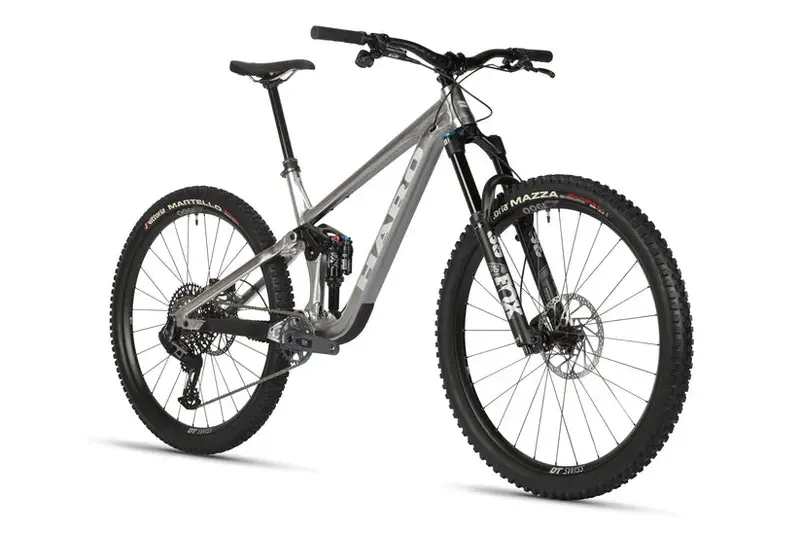

Haro Daley Alloy 1 LTD 29″
Raw and rowdy! Introducing the Haro Daley Alloy Raw LTD 1 and LTD 2. The limited edition raw finish for our Daley Alloy MTB comes by request. We answered with an anodized raw finish over a burnished alloy surface with etched logo detail for a clean, crisp look that hits hard. Available in two premium builds with Fox suspension. Ready to rock and roll.
Features:
- Haro Daley alloy full-suspension frame with raw anodized finish, 1-1/8″ – 1-1/5″ Tapered Head Tube, 148mm Boost OLD, UDH Derailleur Hanger
- Fox Float X Performance Elite shock, 140mm travel
- Fox Float 36 Performance Elite fork with Grip X, 150mm travel
- SRAM GX Eagle drivetrain
- DT Swiss M 1900 wheel set
- Vittoria Mazza 2.4″, enduro G2.0 front & Vittoria Martello 2.4″ enduro G2.0 rear tires
- TRP DH-R EVO 4-piston hydraulic disc brakes with 203mm rotors, front & rear
- Race Face Turbine bars & stem
- Kind Shock LEV Integra dropper post, size specific
- Includes tubeless valves and sealant
Specifications:
| Frame |
Haro Daley alloy full-suspension frame with raw anodized finish, 1-1/8″ – 1-1/5″ tapered head tube, 148mm Boost OLD, UDH derailleur hanger |
| Fork |
Fox Float 36 Performance Elite with Grip X, 150mm travel |
| Frame Shock |
Fox Float X Performance Elite, 140mm travel |
| Colors |
Raw |
| Weight |
37.7 lbs 16.98 kg, (L) |
| DRIVETRAIN |
|
| Cranks |
SRAM GX Eagle T-Type 165mm, Q174, CL:55 |
| Pedals |
N/A |
| Chain |
SRAM GX Eagle T-Type 12-speed |
| Bottom Bracket |
SRAM DUB BSA 73mm wide |
| Front Derailleur |
N/A |
| Rear Derailleur |
SRAM GX AXS T-Type, 12-speed |
| Derailleur Shifter |
SRAM AXS POD right bridge |
| Freewheel/Cassette |
SRAM AXS 1275 T-Type, 10-52T |
| WHEELS |
|
| Tires |
Front: Vittoria Mazza 2.4″, enduro G2.0 120TPI / Rear: Vittoria Martello 2.4″ enduro G2.0 120TPI |
| Wheels/Rims |
DT Swiss M 1900 wheel set |
| BRAKING SYSTEM |
|
| Brakes |
TRP DH-R EVO 4-piston hydraulic disc with 2.3mm thick, 203mm rotors, front & rear |
| Brake Levers |
TRP DH-R EVO |
| OTHER COMPONENTS |
|
| Grips/Tape |
WTB Wavelength 130mm lock-on |
| Handlebar |
Race Face MY25 Turbine, 35mm OD, 40mm rise, 800mm wide |
| Stem |
Race Face Turbine R, 35mm ID, 40mm reach |
| Headset |
FSA ORBIT 1.5E ZS/ NO.57E tapered, 44/56mm head tube |
| Saddle |
WTB Volt Medium PU leather, flex-tuned, chromoly rails, with ABR corners |
| Seat Post |
Kind Shock LEV Integra dropper, 34.9mm OD, Sizes: Small 150mm, Medium 170mm, Large 200mm, X-Large 200mm |
| Seat Clamp |
3D Forged 6061 aluminum 38.9mm ID |
| Extras |
Includes tubeless valves and sealant |
Geometry:
| SIZE |
S |
M |
L |
XL |
| Seat Tube (C-T) |
361mm |
410mm |
448mm |
473mm |
| Top Tube (Effective) |
553mm |
590mm |
617mm |
644mm |
| Head Tube Angle |
64.5° |
64.5° |
64.5° |
64.5° |
| Seat Tube Angle |
78° |
78° |
78° |
78° |
| Chainstay Length |
428mm |
445mm |
445mm |
445mm |
| BB Drop |
23mm |
33mm |
33mm |
33mm |
| Wheelbase |
1172mm |
1237mm |
1266mm |
1296mm |
| Head Tube Length |
90mm |
100mm |
110mm |
120mm |
| Standover |
691mm |
685mm |
705mm |
705mm |
| Stack Height |
579mm |
610mm |
619mm |
628mm |
| Reach |
430mm |
460mm |
485mm |
510mm |
| Axle to Crown |
544mm |
561mm |
561mm |
561mm |
| Fork Offset |
44mm |
44mm |
44mm |
44mm
|
Sizing Guide:
| Size |
Inches |
CM |
| S |
5″ – 5′ 6″ |
153 – 166 |
| M |
5′ 4″ – 5′ 11″ |
162 – 180 |
| L |
5′ 9″- 6′ 2″ |
175 – 187 |
| XL |
6′ – 6′ 5″ |
180 – 196 |
